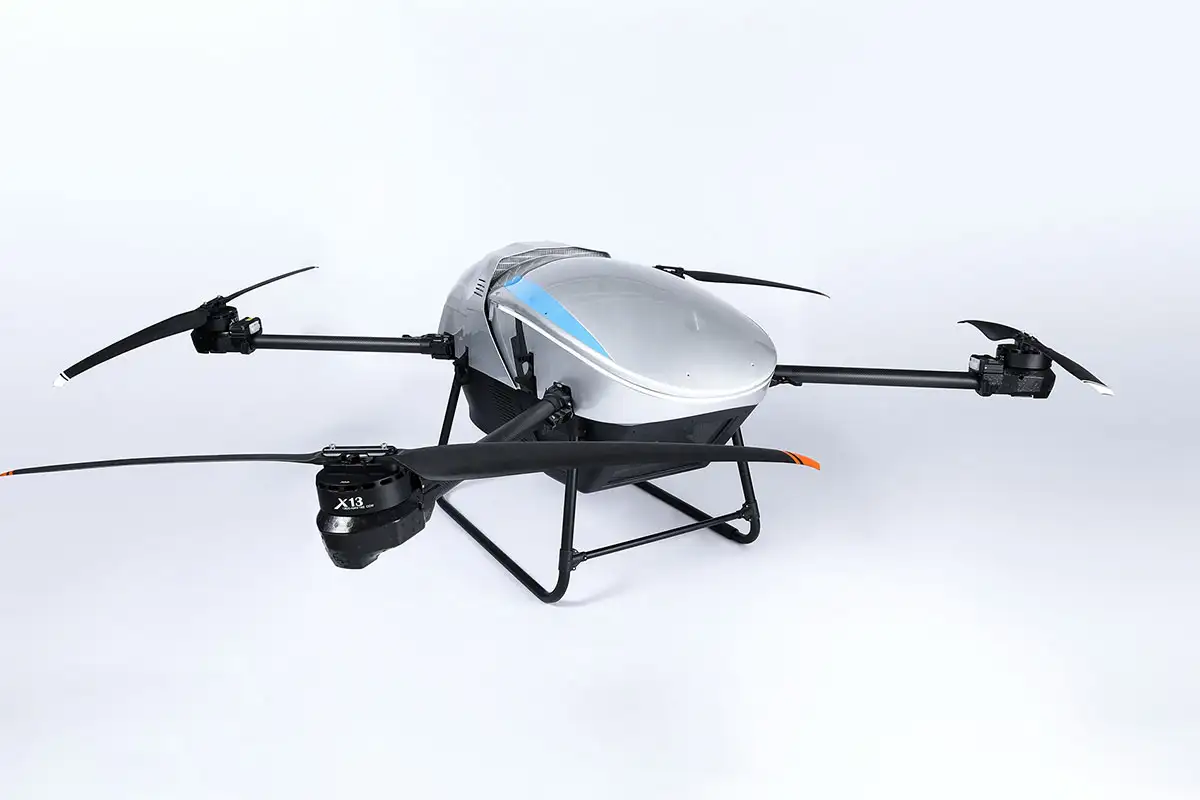

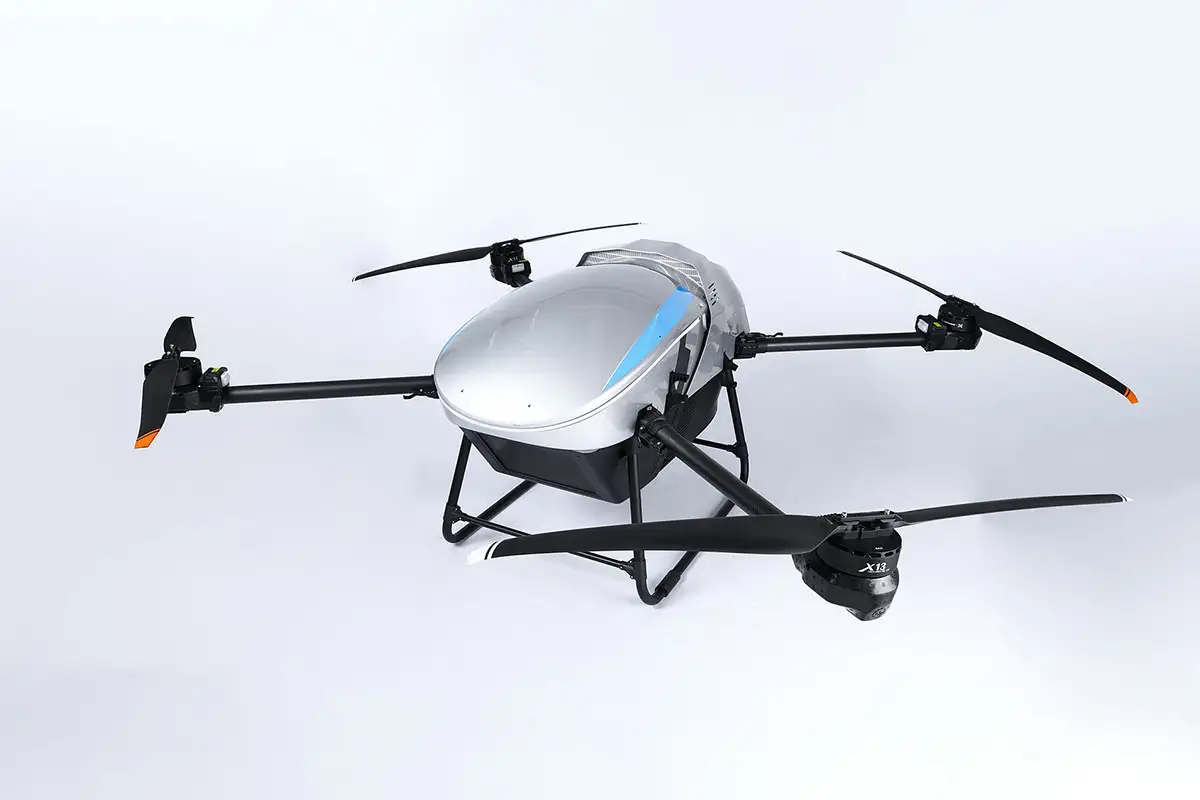

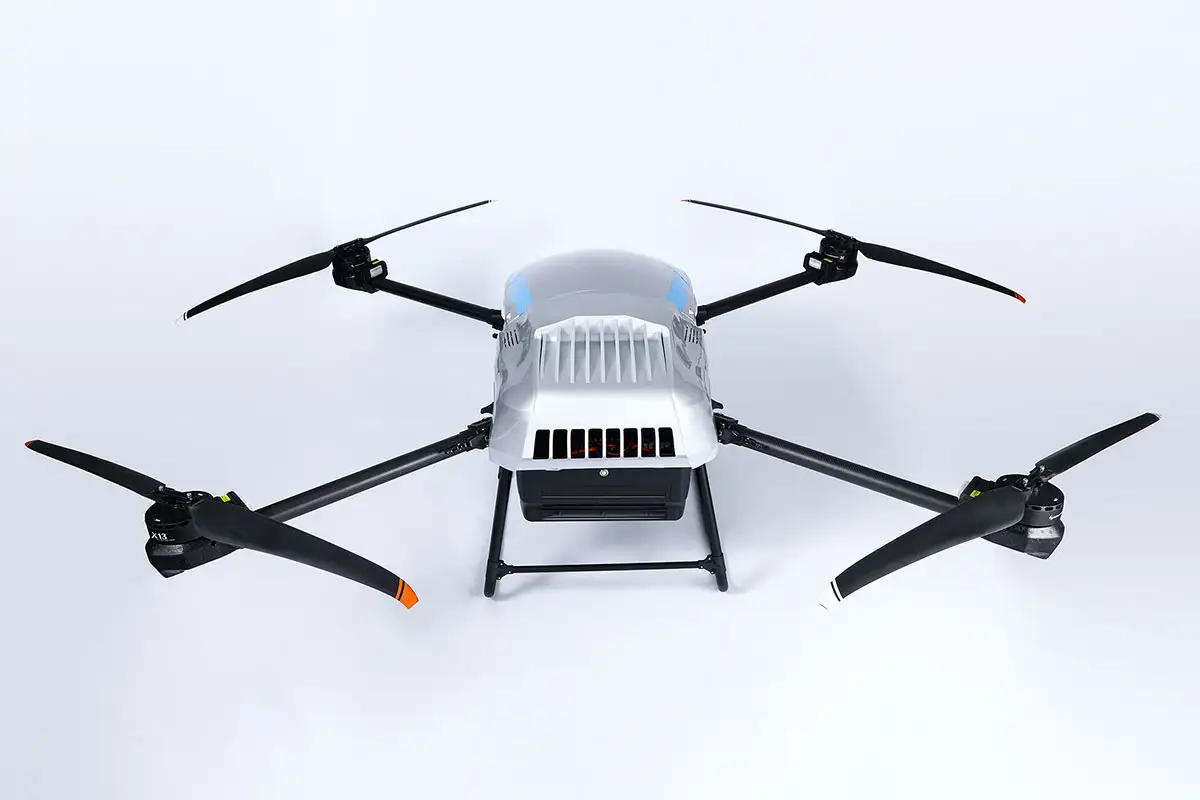

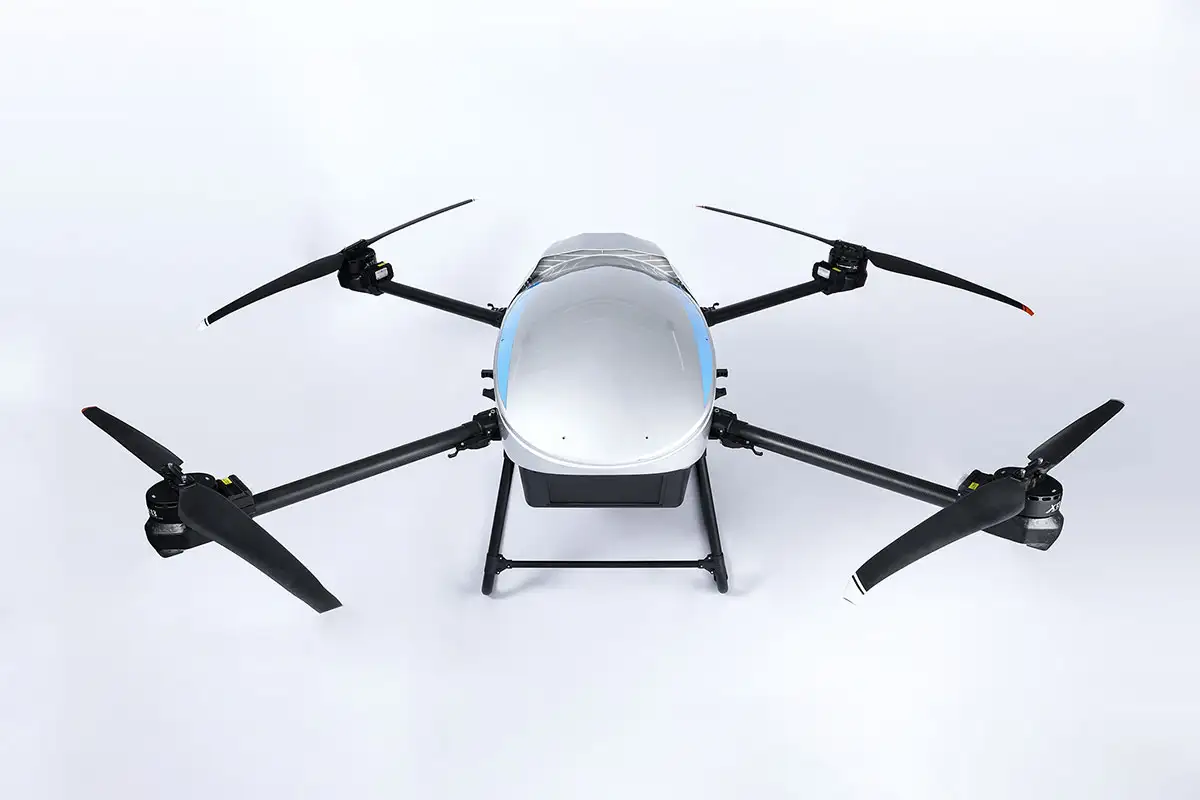

Atlas L100
An industrial-grade drone platform developed specifically for power inspection, precision agriculture.
keywords:
Category:

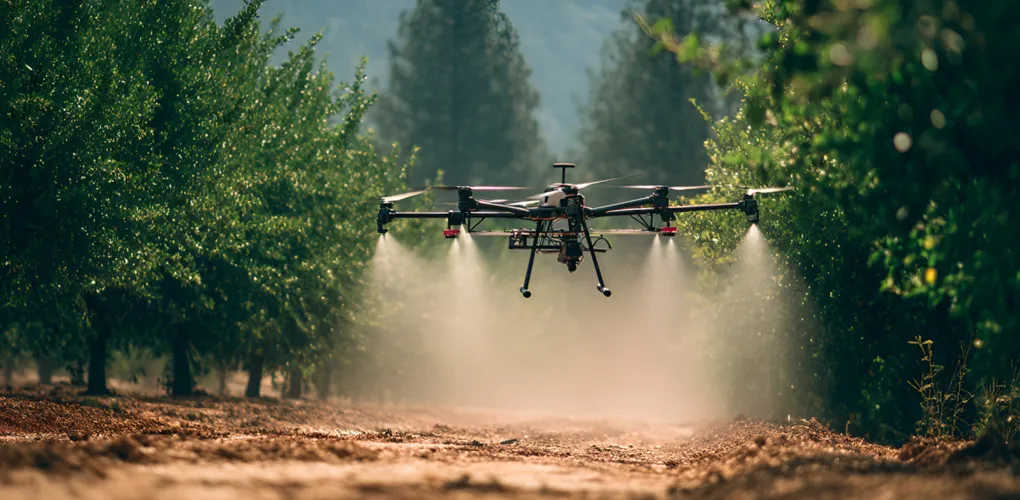

Agricultural Spraying Drone

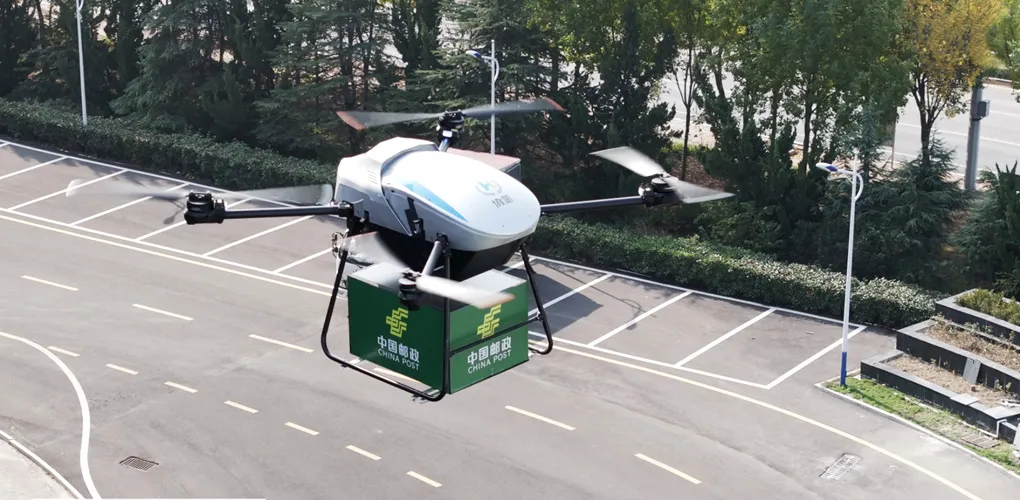

Material Transportation Drone
Firefighting Drone

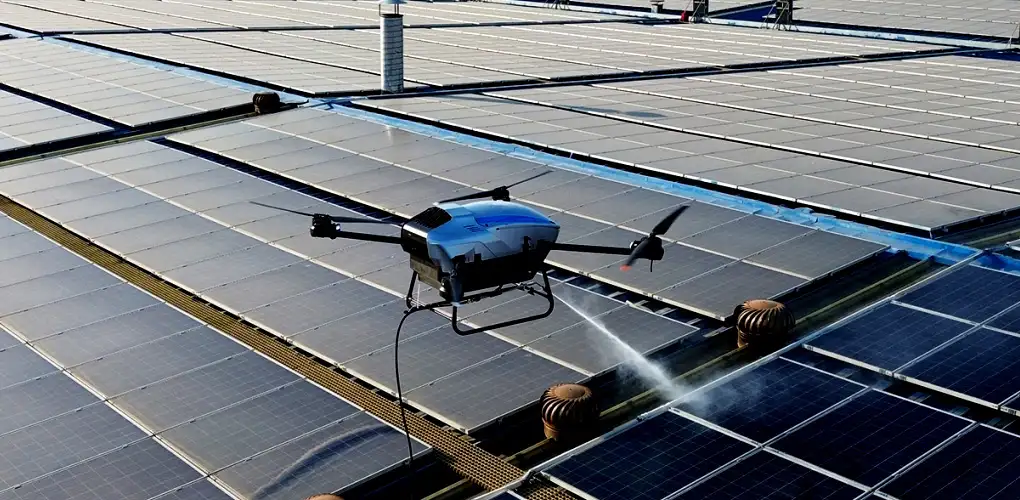

Cleaning Drone
Product Description
An industrial-grade drone platform developed specifically for power inspection, precision agriculture, logistics distribution, and other scenarios, integrating an intelligent flight control system and multi-functional payload modules to break through traditional operational limitations and provide efficient, safe, and low-cost aerial operation solutions.
Technical Advantages
● Fully autonomous operation
● Multi-scenario adaptation
● Professional-grade payload
● Minimalist operation
● Data intelligence
● Compliance and safety
Technical Specifications
Product Specifications | |
Category | Parameters |
Model | Quadcopter |
Wheelbase | 2310 mm |
Power Battery | 18S 30Ah |
Max Takeoff Weight | 100 kg |
Max Payload | 60 kg (Dual-Battery Version: 46 kg) |
Max Flight Time | 30 min (Customizable Dual-Battery Version: 45 min) |
Communication Range | 15 km (Optional 50 km Link) |
Max Flight Altitude | 3000m |
Max Flight Speed | 18m/s |
Max Climb Rate | 3m/s |
Max Descent Rate | 2m/s |
Wind Resistance | Level 6 |
Operating Temperature | -20℃ to 50℃ |
Hovering Accuracy(GNSS Enabled) | Horizontal: +1.5 m; Vertical: ±0.5 m |
Unfolded Dimensions | 1740x1870x820mm(LxWxH) |
Folded Dimensions | 1150x870x950mm(LxWxH) |
Mission Payloads | Cleaning Module, Hoisting Module, |
Industry Solutions

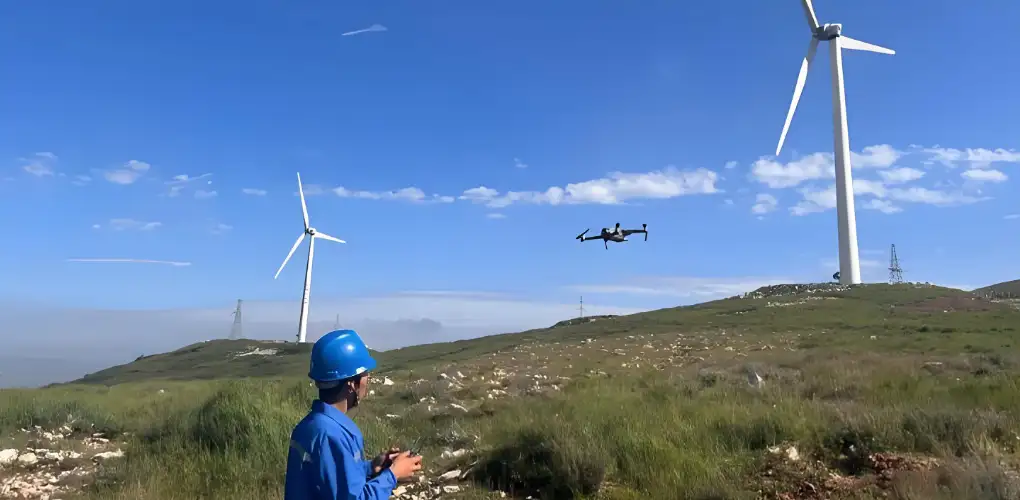

● Power inspection
● Smart agriculture
● Emergency logistics
● Surveying and exploration
Note: This article strictly complies with the “Safety Management Regulations for Civil Unmanned Aerial Vehicle Systems.” All performance data is supported by actual test reports. Actual application requires the acquisition of the corresponding operating qualifications.

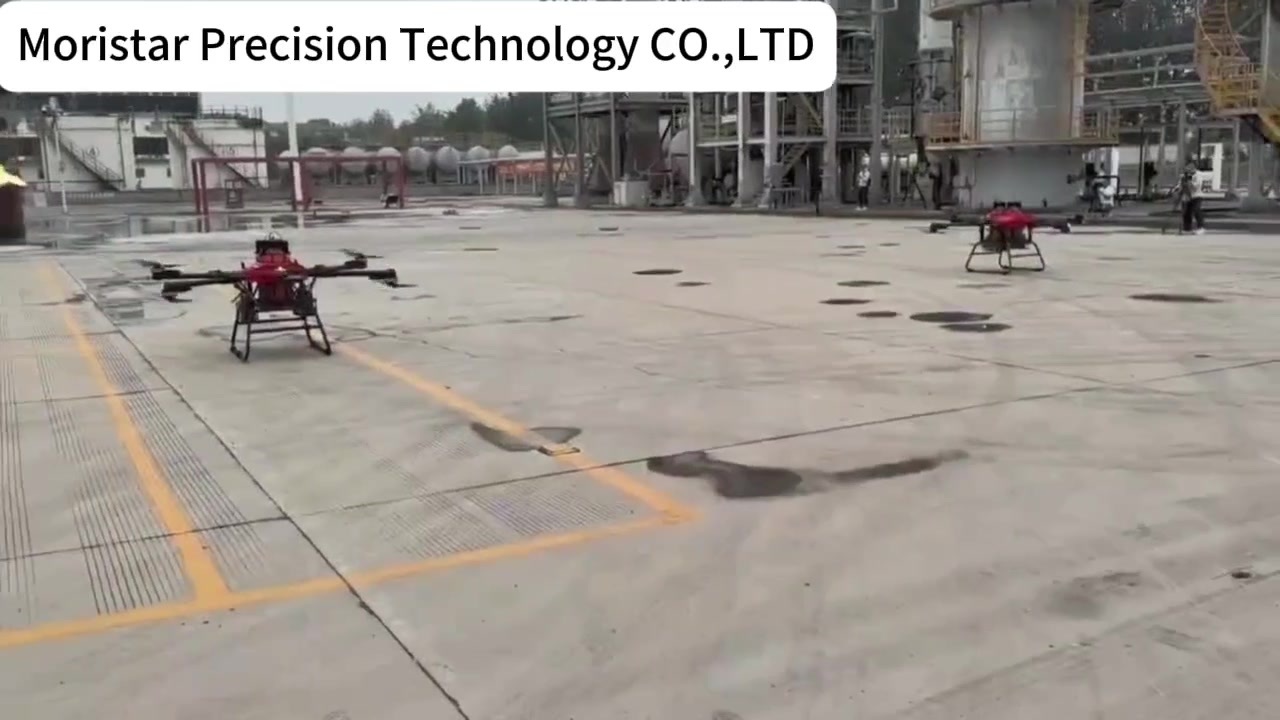

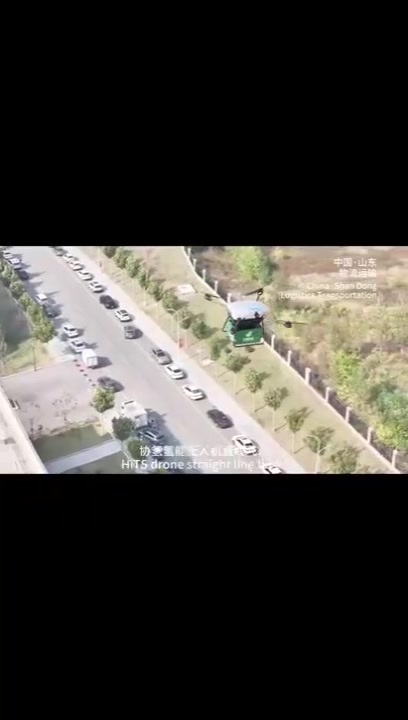

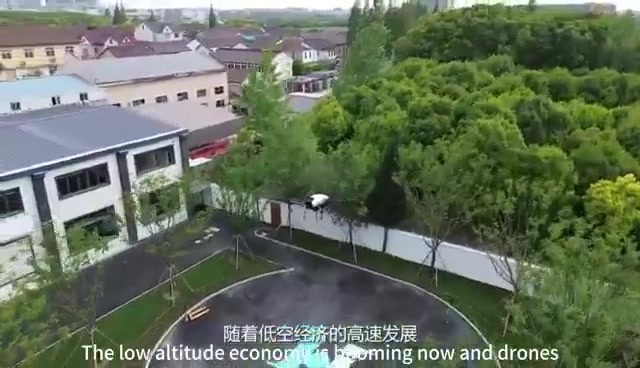

Related videos
Atlas L100
Atlas L100
Transport Drone
Inspection Drone
Firefighting Drone
Cleaning Drone
CONTACT US
Address
H.Q:1303A Yanshan business center 1# Zhengzhou street Shibei District Qingdao. China
Previous page
Next page
What makes us different from other providers?
The World's Leading Provider of Air-Cooled Hydrogen Fuel Cell Systems Hydrogen-Powered Drones
Performance Advantages
Compared with peer product,we are ahead of the performance in long endurance, and cold resistance, high load capacity.
R&D and Manufacturing
With dedicated R&D centers in Shenzhen (UAV systems) and Chizhou (hydrogen technology), and three manufacturing bases in Chizhou, Zaozhuang, and Zhangjiagang, we are driving the most advanced technology in UAV area.
Customized Services
We offer OEM and ODM services, and with our cuttingedge drone technology, we can provide customized drone solutions.
Industry Solutions
Which we can be competent for the job of fire control, pesticide spraying，Material delivery，Land Surveying and a lot of cleaning job
Product Series
Application Sectors
Classic Examples
Apply for a discount!
24-hour online service
Provide you with free and professional OEM solutions based on your needs
You can also contact us directly via WhatsApp: +86-15066297022, Email: moristar-william@qq.com
Factory workshop

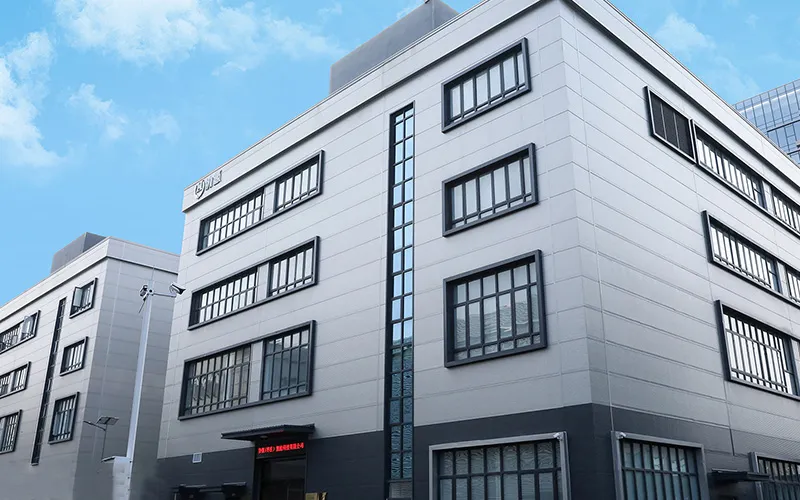

Production base

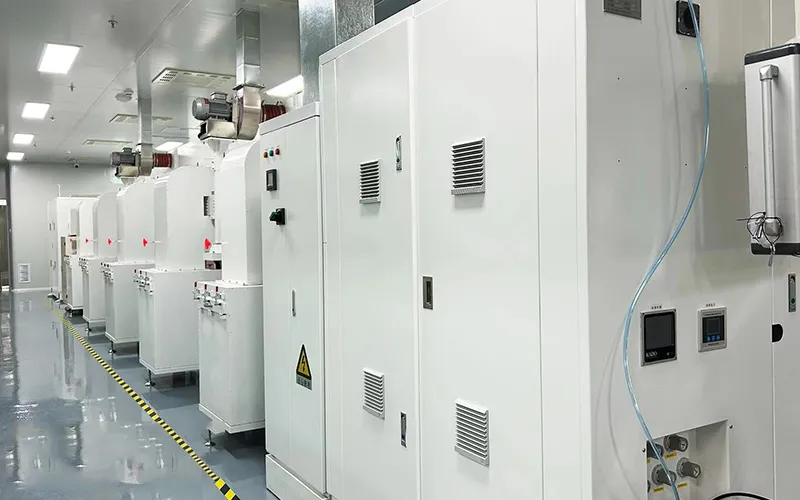

Electric Reactor Production Workshop

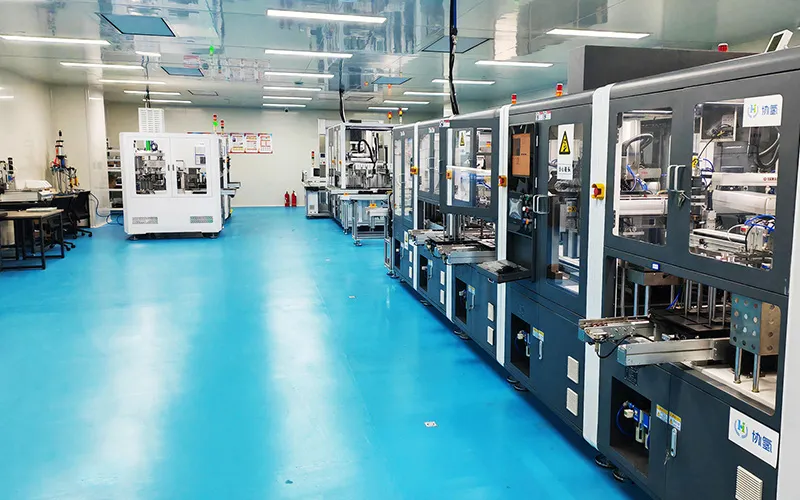

Membrane electrode production workshop

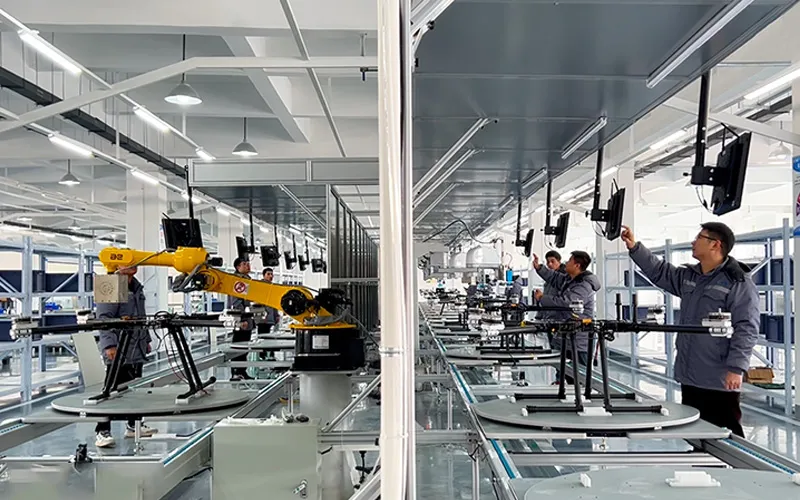

Drone production workshop
