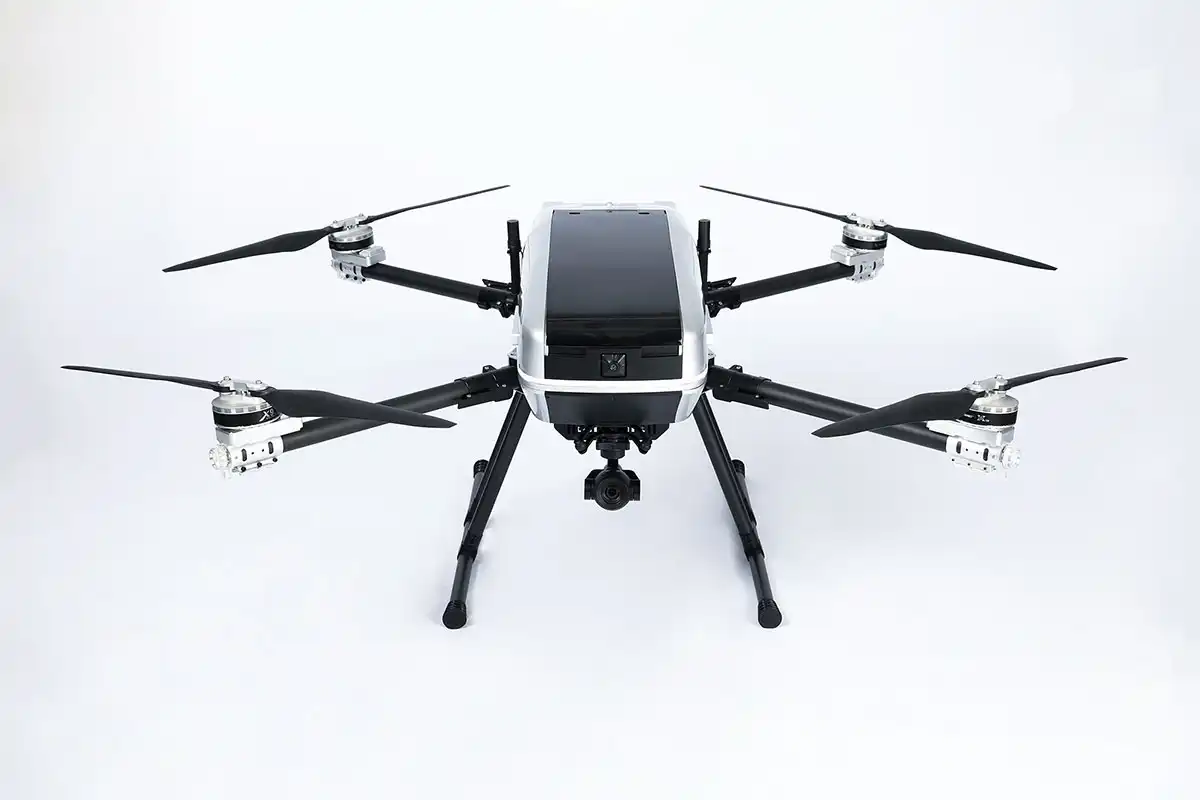

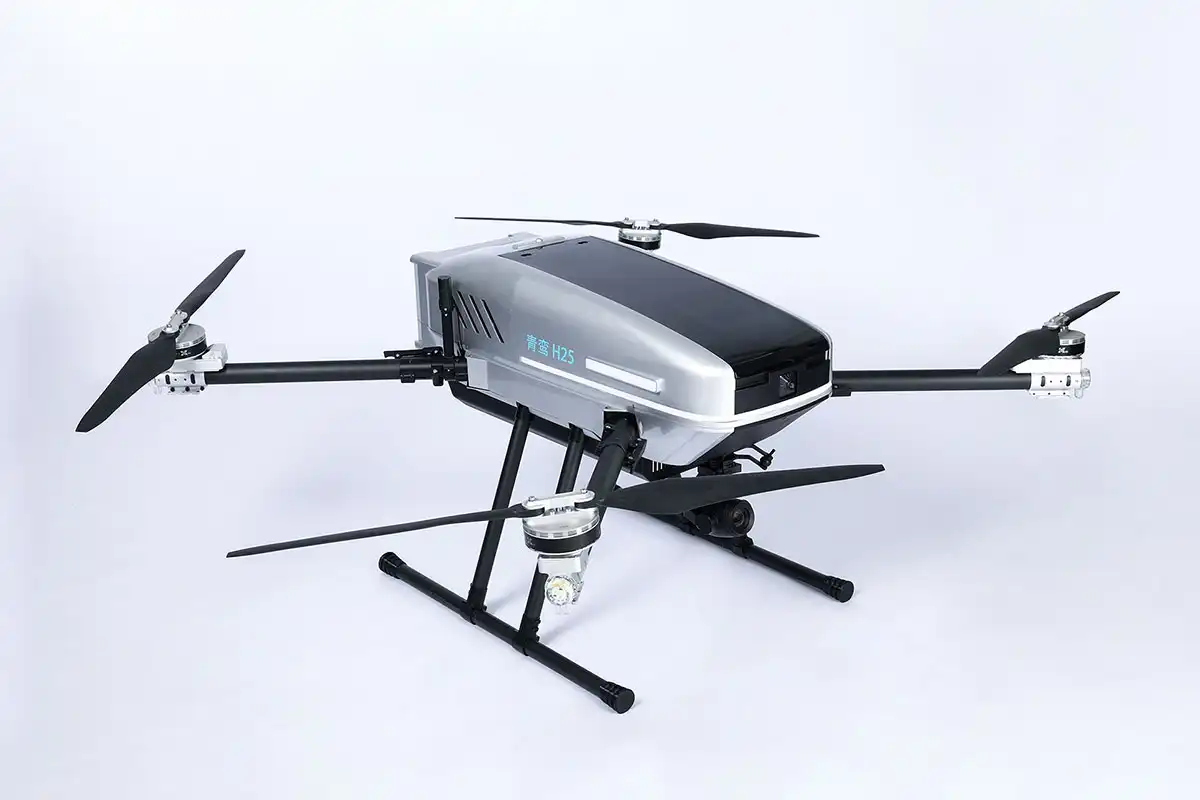

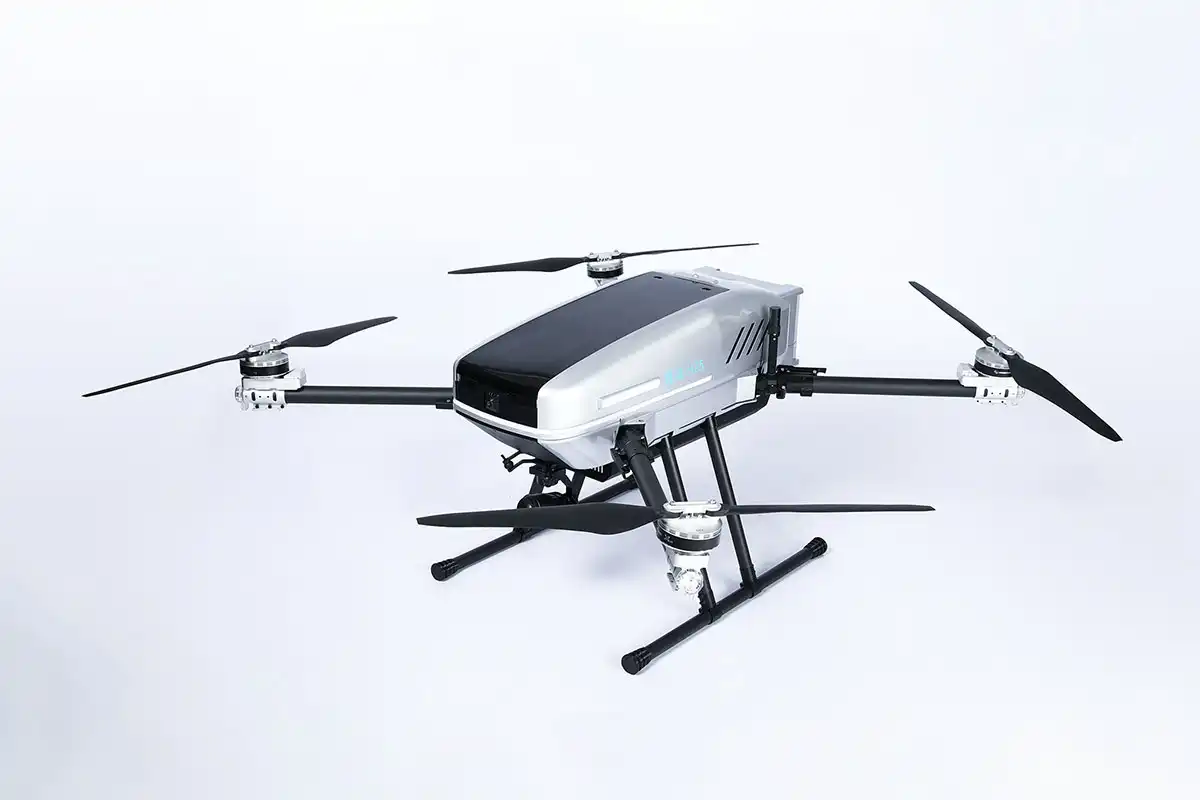

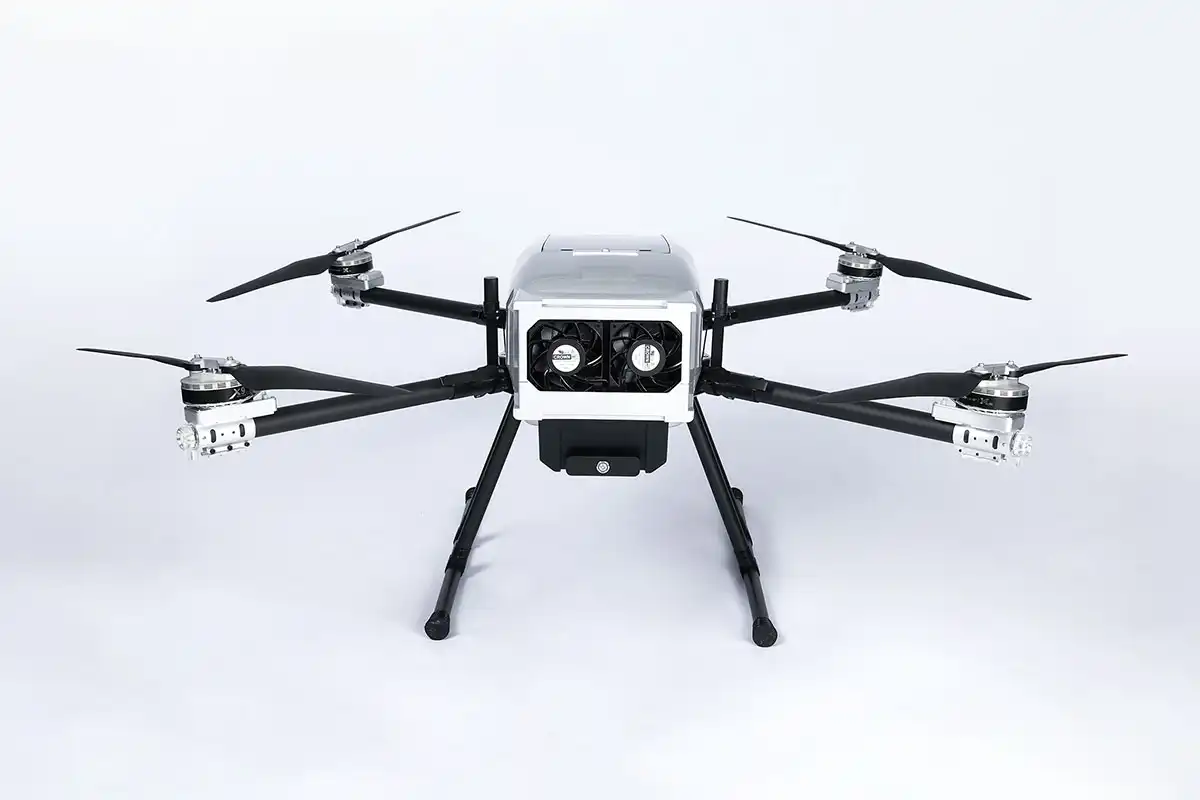

Phoenix H25
An industrial-grade drone platform developed specifically for power inspection, precision agriculture, logistics distribution.
keywords:
Category:
Hydrogen-Powered Drone
The low altitude economy is booming now and drones are diversifying in their applications, Lithium drones have short flight times, low temperatures resistance,hinder the broad application of drones, but a technology breakthrough hydrogen power ,spearheaded by Chinese firms,is transforming the low altitude economy's framework.
Lithium battery drones face a few application challenges,one problem,is that they typically fly for about 30 minutes, if under heavy loads,this drops to around 10 minutes only, and also necessitating frequent battery replacement,the second issue is that in low temperature conditions,battery performance is significantly affected,this severely impacts operational ability,but our H 100 drone,can lift 50 kilograms,and operate for over two hours, in temperatures as low as minus 35 degrees.
Product Description
An industrial-grade drone platform developed specifically for power inspection, precision agriculture, logistics distribution, and other scenarios, integrating an intelligent flight control system and multi-functional payload modules to break through traditional operational limitations and provide efficient, safe, and low-cost aerial operation solutions.
Technical Advantages
● 90minutes working time
● 50Km Endurance
● -40°C cold resistance
● 7Kg Payload
Technical Specifications
Category | Parameters |
Model | Quadcopter |
Wheelbase | 1640mm |
Hydrogen Fuel Cell | 3.6 Kw |
Hydrogen Tank | 12 L @35MPa |
Empty Weight | 26 Kg |
Max Payload | 7kg |
Max Endurance | 90min |
Max Flight Altitude | 3000m |
Max Flight Speed | 18m/s |
Max Climb Rate | 3 m/s |
Max Descent Rate | 2 m/s |
Wind Resistance | Level6 |
Operating Temp. | -40℃ to 50℃ |
Hovering Accuracy((GNSS Enabled) | Horizontal: +1.5m; Vertical: ±0.5m; |
Unfolded Dimensions | 1250x1300x680 mm (LxWxH) |
Folded Dimensions | 860x660x790 mm (LxWxH) |
Mission Payload | Electro-Optical Pod/Loudspeaker/ Searchlight, etc. |
Industry Solutions
● Security Patrol Drone
● Aerial Mapping Drone
● Emergency Rescue Drone
● Commercial Drone
● Surveillance Drone
Note: This article strictly complies with the “Safety Management Regulations for Civil Unmanned Aerial Vehicle Systems.” All performance data is supported by actual test reports. Actual application requires the acquisition of the corresponding operating qualifications.
