15KG
Payload

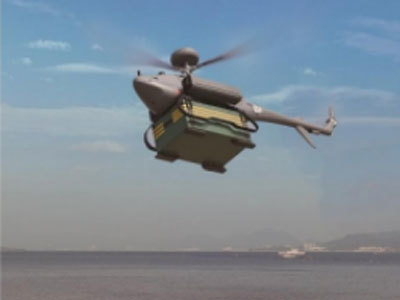

Helicopter G1
An industrial-grade drone platform developed specifically for power inspection, precision agriculture.
keywords:
Category:
Material Transportation Drone
Surveillance Drone
Helicopter Drone Series
Unmanned Transport Helicopters
Efficiency Revolutionizes Innovation
30KM
BVLOS Transmission
40KM
Flight Distance
6000M
Max Altitude
Level 7
Wind Resistance
Parachute
Emergency
Dimensions | Without rotor blade:1997*523*639mm | Disassembled | Fuselage:1106*490*639mm Tail Boom:932*130*450mm |
Main Rotor Diameter | 2275mm | Communication Range | 30KM |
Max Take-off Weight | 45kg | Communication Frequency | 430-1444MHz |
Max Payload | 15kg | Wind Resistance | Level7 |
UAV Weight | 30kg(with battery) | Max Service Ceiling | 6000m |
Battery Weight | 6.6kg | Hover Accuracy | Vertical:±2.0m(GNSS)±0.1m(RTK) |
Cruising Speed | 50-75km/h | Max Climb/ Descend Speed | 5m/s |
Max Speed | 90km/h | Operating Temperature | -10℃~+55℃ |
Endurance | 65min | Storage Temperature | -20℃~+60℃ |
Flight Range | 60km | Parachute | Support |
Recommended Cargo | External Dimensions:600*400*253mm Internal Dimensions:540*340*250mm |
|
|
Robust performance,High-efficiency delivery
Three-Blades Configuration
Boost lift redundancy for improving stability,payload,and wind resistance.
Modular and Foldable
Dismantle modular fuselage and fold landing gear
Cargo containment and Winch
Support dual transport modes for versatile operations
*Open to third-party interfaces for seamless integration
